Gang Slitter/ Food Tin Making Machine
Capacity:42/60 cans/min Diameter:52-190mm Max height:280mm Tinplate thickness:≤0.4mm
Product description
AUTOMATIC ROUND CAN MAKING MACHINE LINE
Specfication:
| Capacity | 42/60 cans/min |
| Diameter | 52-190mm |
| Max height | 280mm |
| Tinplate thickness | ≤0.4mm |
| Motor Power | 30kw |
| No. | Machine | Quantity(sets) |
| 1 | Gang Slitter | 1 |
| 2 | Automatic roller & welder | 1 |
| 3 | Water chiller | 1 |
| 4 | Automatic flanging machine | 1 |
| 5 | Automatic seamers | 2 |
| 6 | Automatic spot welders | 1 |

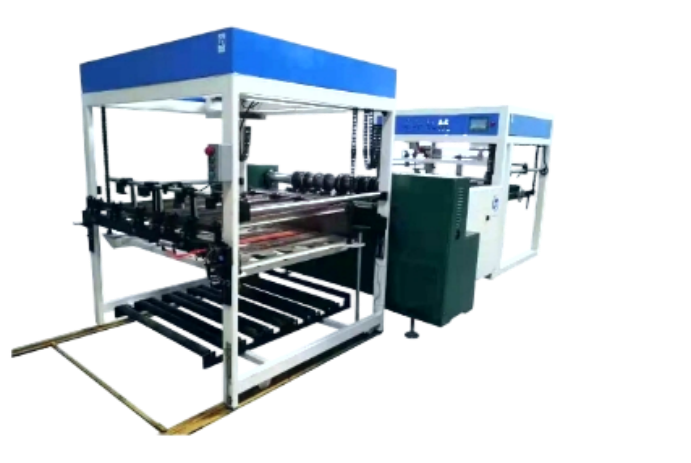

| Automatic single slitter |
| This slitter can be used for trimming and cutting |
| sheet into strip type as well. |
| Machine dimension :6000x1600x1800mm |
| Motor power : 5.5KW, 380,50/60HZ |
| Cutting width : 1050mm |
| Cutting size Max : 1100x1100mm |
| Speed : 50 pieces per min |
| Total weight : 5000 kgs |
| Feeing device introduction : |
| With loading weight of 3 TON. |
| With auto-lift in feeding lid.And auto-down at last |
| piece. With double sheet detective and brake motor. |
| With magnetic to seperate. |
| 2, Feeding conveyor with rectify table. |
| 3, Slitter |
| Cutting balde : Cr12Mov |
| Sheet size : 42-1200mm |
| Cutting blade : 7 pcs |
| 4, Stacking device |
| With loading weight of 3 TON. |
| Can be used for strip or trimming sheet stacking. |
| Stacking down automatically. |
| Stacking parts has the roller installed. |

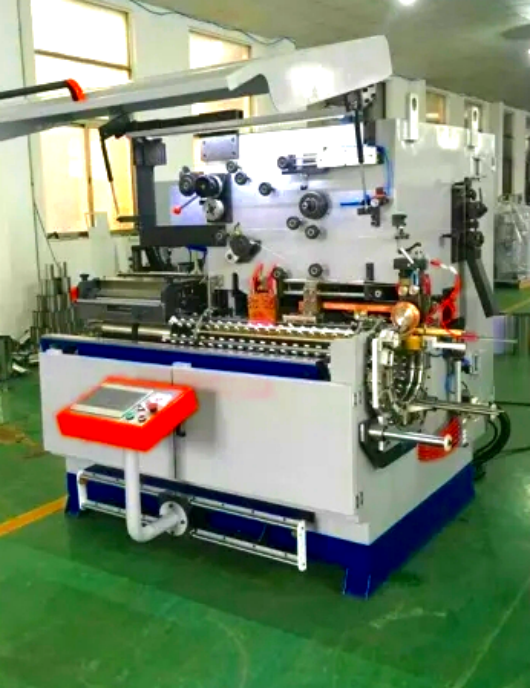

2,Automatic seam welders
| Model: | FH18-65 |
| Power: | 3N380V/50HZ-10KVA |
| Welding speed: | 6-12m/min |
| Capacity: | 20-50cans/min |
| Diameter: | ¢52-180mm |
| Height: | 200--450mm |
| Overlap: | 0.8-1.0-1.2mm |
| Thickness: | 0.25-0.42mm |
| Copperwire: | ¢1.5-1.7mm |
| Cooling water: | ≥0.3Mpa 8-10L/min |
| Net Weight: | 1300kgs |
| Dimension:1350x1300x1700mm |
3,Automatic flanging and seamer machine
| can height : 70-280mm |
key word:Gang Slitter/ Food Tin Making Machine
